ShipBuilding Steel Plates

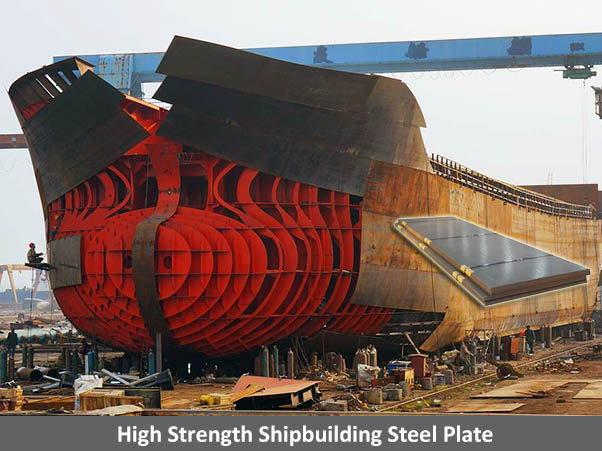

Shipbuilding Steel Plate For Hull

What is ShipBuilding Steel Plate

Shipbuilding steel plate refers to hot-rolled steel for the manufacture of ship structures produced in accordance with the requirements of the construction society. Often used as a special steel ordering, scheduling, sales, a ship including ship plates, steel and so on.

Shipbuilding Steel Classification:

The Shipbuilding steel plate can be divided into general strength structural steel and high strength structural steel according to its minimum yield point strength level.

AGICO supplies and exports 2 types of ship steel, medium strength shipbuilding plate and high strength shipbuilding plate. All steel plate product can be manufactured according to Society LR, ABS, NK, GL, DNV, BV, KR, RINA, CCS, etc.

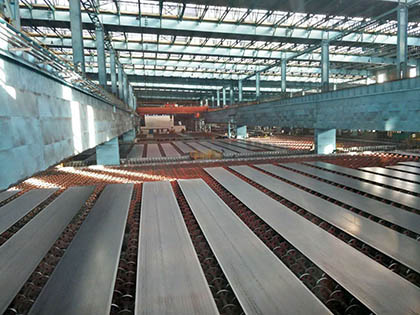

Shipbuilding Plate Produciton

Shipbuilding Steel Plate Development

Shipbuilding requires large quantities of structural steel plate to build to ship hull. Ship steel has developed into 2 series: high strength and corrosion resistant steels for modern shipbuilding, which can reduce the ship weight as well as maintenance cost. AGICO is able to supply high strength steel plate for Large container ships construction.

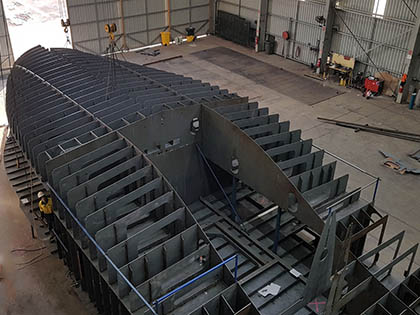

Shipbuilding Steel Plate Construction

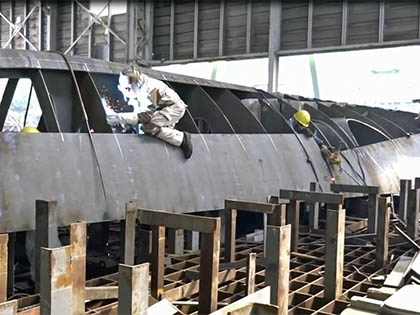

Shipbuilding Steel Plate Welding

Shipbuilding traditionally uses structural steel plate to fabricate ship hulls. Modern steel plates have much higher tensile strengths than their predecessors, making them much better suited to the efficient construction of large container ships. Here are the Advantages of Shipbuilding Plates High corrosion resistant steel plate is perfect steel type for oil tanks, and when used in shipbuilding, ship weight is less for the same capacity ships, fuel cost and CO2 emission can be reduced.

These shipbuilding steel can also be used for offshore structures, if you are looking for shipbuilding steel plate or offshore structure steel plate, Contact ANSON now for the latest quotation.



Grade and Chemical Composition (%)

Grade C%≤ Mn % Si % p % ≤ S % ≤ Al % Nb % V %
A 0.22 ≥ 2.5C 0.10~0.35 0.04 0.40
B 0.21 0.60~1.00 0.10~0.35 0.04 0.40
D 0.21 0.60~1.00 0.10~0.35 0.04 0.04 ≥0.015
E 0.18 0.70~1.20 0.10~0.35 0.04 0.04 ≥0.015
A32 D32 E32 0.18 0.70~1.60 0.90~1.60 0.90~1.60 0.10~0.50 0.04 0.04 ≥0.015
A36 D36 E36 0.18 0.70~1.60 0.90~1.60 0.90~1.60 0.10~0.50 0.04 0.04 ≥0.015 0.015~0.050 0.030~0.10

Shipbuilding Steel Plate Mechanical Properties:

Grade Thickness
(mm)
Yieldpoint
(Mpa) ≥
Tensile Strength
(Mpa)
Elongation
(%)≥
V-impact test cold bend test
Temperature
(℃)
Average AKV
A kv /J
b=2a
180°
b=5a
120°
lengthways crosswise
A ≤50 235 400~490 22 d=2a
B 0 27 20 d=3a
D -10
E -40
A32 ≤50 315 440~590 22 0 31 22 d=3a
D32 -20
E32 -40
A36 ≤50 355 490~620 21 0 34 24 d=3a
D36 -20
E36 -40

Shipbuilding Plate Available Dimensions:

variety Thickness (mm) Width (mm) Longth/ inner diameter (mm)
Shipbuilidng plate cutting edges 6~50 1500~3000 3000~15000
non- cutting edges 1300~3000
Shipbuilidng coil cutting edges 6~20 1500~2000 760+20~760-70
non-cutting edges 1510~2010

Shipbuilding Steel Theoretical Weight

Thickness (mm) theoretical weight Thickness (mm) theoretical weight
Kg/ft2 Kg/m2 Kg/ ft2 Kg/m2
6 4.376 47.10 25 18.962 196.25
7 5.105 54.95 26 20.420 204.10
8 5.834 62.80 28 21.879 219.80
10 7.293 78.50 30 23.337 235.50
11 8.751 86.35 32 25.525 251.20
12 10.21 94.20 34 26.254 266.90
14 10.939 109.90 35 27.713 274.75
16 11.669 125.60 40 29.172 314.00
18 13.127 141.30 45 32.818 353.25
20 14.586 157.00 48 35.006 376.80
22 16.044 172.70 50 36.464 392.50
24 18.232 188.40

Dimensional Deviation

nominal thickness(mm) The thickness deviation with following width (mm)
≤1200 >1200~1500 >1500~1800 >1800
>6.0~8.0 ±0.29 ±0.30 ±0.31 ±0.35
>8.0~10.0 ±0.32 ±0.33 ±0.34 ±0.35
>10.0~12.0 ±0.35 ±0.36 ±0.37 ±0.43
nominal thickness(mm) minus deviation (mm) The thickness deviation with following width (mm)
>  1000 ~1200 >  1200 ~1500 >  1500 ~1700 >  1700 ~1800 >  1800 ~2000 >  2000 ~2300 >  2300 ~2500 >  2500 ~2600   2600 ~2800 >  2800 ~3000
>12~25 -0.8 +0.2 +0.2 +0.3 +0.4 +0.6 +0.8 +0.8 +1.0 +1.1 +1.2
>25~30 -0.9 +0.2 +0.2 +0.3 +0.4 +0.6 +0.8 +0.9 +1.0 +1.1 +1.2
>30~34 -1.0 +0.2 +0.3 +0.3 +0.4 +0.6 +0.8 +0.9 +1.0 +1.2 +1.3
>34~40 -1.1 +0.3 +0.4 +0.5 +0.6 +0.7 +0.9 +1.0 +1.1 +1.3 +1.4
>40~45 -1.2 +0.4 +0.5 +0.6 +0.7 +0.8 +1.0 +1.1 +1.2 +1.4 +1.
