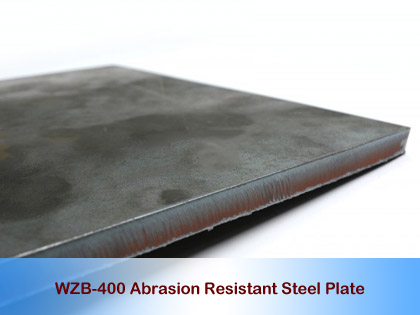

WZB-NM360, WZB-NM400, WZB-NM500, WZB-NM500, WZB-NM550 are steel grades of wear steel plate made of Wugang, which is used for high wear and high impact applications, it can also be used as high strength structural steel with yield strength larger than 800MPa.

The premise of the steel plate has a good impact toughness and welding performance without loss of strength. It is a domestic steel standard in China for manufacture of Excavators, loaders, bulldozers bucket plate, blade board, side edge plate. Crusher liner, blade, etc.


Comparison of WZB-NM Steel and Hardox Steel:

  • HARDOX400 wear-resistant steel plate hardness is 400HBW. Has excellent welding performance, impact strength and bending performance.
  • HARDOX450 wear plate hardness is 450HBW. Its best feature is its high hardness and toughness, and it is as easy to process as HARDOX400 despite its high hardness.
  • HARDOX500 wear-resistant steel plate hardness is 500HBW. Which can withstand severe wear and tear. It is suitable for working in strong abrasive environments such as high strength ores and corrosive materials.
  • HARDOX600 is the world's hardest wear-resistant steel plate, its hardness is 600HBW. It is generally used in extremely severe wear and is used to replace cast steel, chrome alloy steel.

NM360 and NM400 wear-resistant steel plate is widely used in mining machinery, coal mining machinery, environmental protection machinery, engineering machinery, cement machinery, metallurgical machinery, brick machinery and other products parts. Also used as a yield strength ≥ 700Mpa high strength structural steel. Application: mainly in the need for your occasions or parts to provide protection, longer equipment life, reduce the maintenance of the maintenance downtime, a corresponding reduction in capital investment. Performance: yield ≥ 800 Tensile ≥ 1000 Hardness 360-420 460-530

WZB-NM Steel Chemical composition:

Steel Grade Thickness
mm
Grade Level WNM Steel Chemical Composition Wt%
C Si Mn P S Mo Cr Ni B
Max
NM 360 ≤50 A-E、L 0.20 0.60 1.60 0.025 0.015 0.50 1.00 0.80 0.004
51-100 A、B 0.25 0.60 1.60 0.020 0.010 0.50 1.20 1.00 0.004
NM 400 ≤50 A-E 0.21 0.60 1.60 0.025 0.015 0.50 1.00 0.80 0.004
51-100 A、B 0.26 0.60 1.60 0.020 0.010 0.50 1.20 1.00 0.004
NM 450 ≤80 A-D 0.26 0.70 1.60 0.025 0.015 0.50 1.50 1.00 0.004
NM 500 ≤80 A-D 0.30 0.70 1.60 0.025 0.015 0.50 1.50 1.00 0.004

WZB NM 360 Steel Plate Mechanical Property:

Steel Grade Thickness mm Grade level Hardness     HBW Tensile Strength Longitudinal impact performance(J)
Yield Strengtha Tensile Strengtha Elongation Yield Ratio Room Temp 0℃ -20℃ -40℃
WZB-NM 360 8 E 398-429 1010-1120 1210-1360 13-17 0.80-0.86       30-56
10 E 393-426 1000-1160 1200-1340 14-19 0.78-0.86       22-43
12 L 370-410 1040-1110 1290-1350 19-21 0.81-0.84     32-40
16 D 378-417 930-1070 1210-1330 19-24 0.75-0.83     21-42
20 D 363-412 940-1110 1190-1330 14-26 0.73-0.84     22-41
30 C 370-410 920-1060 1170-1330 13-18 0.72-0.80   33-52
40 B 360-398 885-1080 1190-1320 13-16 0.72-0.82 43-61
50 B 358-390 820-1020 1120-1180 16-20 0.77-0.84 34-45
80 A 380-430 1320-1345 1420-1460 12-13 0.83-0.86 35-40   30-32

WZB NM 400 Steel Plate Mechanical Property:

Steel Grade Thickness mm Grade level Hardness     HBW Tensile Strength Longitudinal impact performance(J)
Yield Strengtha Tensile Strengtha Elongation Yield Ratio Room Temp 0℃ -20℃
WZB-NM 400 10 C 420 1140 1300 14 0.88 93 55 /
15 D 413 1100 1190 18 0.92 62 42 28
20 A 393 1190 1350 18 0.88 55 / /
30 D 416 1190 1450 13 0.82 43 38 22
35 A 398 1220 1360 15 0.9 67 / /
40 C 380 1250 1320 14 0.95 58 55 /
50 B 401 1100 1430 12 0.77 46 31 /
50 A 387 1120 1200 12 0.93 45 / /

NM 360 NM 400 Steel Plate-Hardness Inspect:

Steel Grade Dimension
mm
Hardness according to different section HB  HB
Upper layer Upper 1/4 1/2 Down 1/4 Down side Average
WZB-NM 360 80 432 383 343 388 423 393 89
40 406 409 385 398 398 399 24
WZB-NM 400 20 417 420 423 420 420 420 6
40 415 426 409 415 415 416 11
50 390 388 388 388 393 389 5

AGICO ANSON supplies WZB-NM360 and NM 400 Steel Plate as well as steel coils and welded steel pipes, if you are interested in buying high quality Abrasion Resistant Steel Plate, please send an email now!
