XAR Abrasion Resistant Steel Plate

XAR Abrasion Resistant Steel Plate


With the advantages of high hardness, quenching and tempering heat treatment, through adding special chemical elements, AGICO supplies XAR (Extra Abrasion Resistant) Steel plate product of different grades are developed ( XAR 400, XAR 450, XAR 500,XAR 550, XAR600) tailored for all applications: mining, heavy equipments in steel mills, cement industry, agricultural machinery. Normally hardness of XAR Steel differs due to the delivery state, for example, after annealing to soft, Hardness of XAR 600 at room temperature is 300HB (max), after hardening or heat treatment, it increases to 550 HB(min).

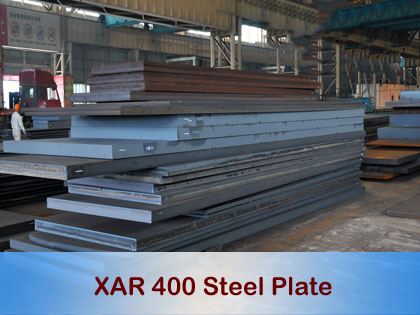

  • XAR 400 steel plate: this grade is the most commonly used steel grade with normal abrasion resistant level, it has extraordinary cold formability and weldablity, its abrasion resistant property doesn’t get weekend when the temperature is below 400℃.
  • XAR 450 steel plate: this grade is a upgraded version of XAR400 with abrasion resistant characteristic improved, the working temperature remains below 400℃.
  • XAR 500 steel plate: maintains formable and weldable characteristics, with element B added, it has higher level of wear resistance for conveyors, crushers, lorries, etc. It shall be delivered as water quenched.
  • XAR 550 and XAR 600 steel plate: cold forming is not allowed for the high hardness, with Ni element added, it is delivered as water quenched or soft-annealed steel.

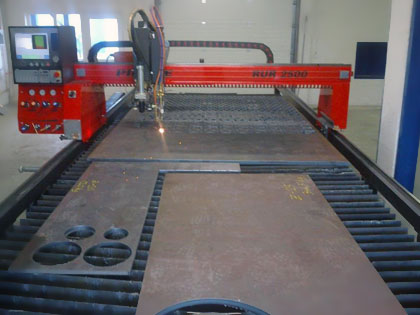

XAR Steel Plate Fabrication

XAR Steel Plate Fabrication:

XAR Steel Plates Chemical Composition:

Steel Grade C max Si Mn P S Cr Mo Ni B
XAR 400 0.20 0.80 1.50 0.02 0.007 1.0 0.5   0.005
XAR 450 0.22 0.80 1.50 0.02 0.007 1.3 0.5   0.005
XAR 500 0.28 0.80 1.50 0.025 0.010 1.0 0.5   0.005
XAR 550 0.35 0.80 1.50 0.025 0.012 1.3 0.5 1.5 0.005
XAR 600 0.40 0.80 1.50 0.025 0.010 1.5 0.5 1.5 0.005

XAR Steel Plate Mechanical Property:

Steel Grade Tensile Strength Mpa Yield Strength Mpa Elongation % HB
XAR400 1300 1150 ≥12 360-440
XAR450 1350 1200 ≥10 410-490
XAR500 1600 1500 ≥9 450-530
XAR600 - - - ≥550

XAR Steel Plate Hardness and Thickness:

Steel Grade Delivery Condition Thickness(mm) Hardness(HBW)
XAR 400 Quenched and tempered 3-100 370-430
XAR 450 3-100 420-480
XAR 500 4-100 470-530
XAR 550 4-100 500-580
XAR 600 8-40 500(min)

AGICO ANSON supplies XAR Steel Plate (XAR 400-XAR 600)as well as steel coils and welded steel pipes, if you are interested in buying high quality Abrasion Resistant Plate, please send an email now!
