Expanded Metal Sheet Dimension Introduction
![Common Expanded Metal Mesh Dimension](/uploads/allimg/common-expanded-metal-mesh-dimension.jpg)
![Flat Expanded Metal Mesh Dimension](/uploads/allimg/flat-expanded-metal-mesh-dimension.jpg)
- LWM: The distance from a point on a knuckle to a joint point on the following knuckle mesured across the long way.
- SWM: The distance from a point on knuckle to a joint point on the following knuckle measure across the short way.
- LWO: Long way of opening, the distance measured from the inside of the knuckle across to the inside of the knuckle LWO
- SWO: Short way of opening, the distance measured from the knuckle across to the inside of the knuckle SWO
- KNUCKLE: The intersection of two strands and it is always the width of two strands
- OVERAL THICKNESS: The actural measurement of the thickness of the mesh measured at the knuckle.
- OPEN AREA: The percentage of open area is showing on the mesh
- STAG ENDS: Incomplete strands existing beyond the joints of mesh either LWD, SWD or both.
- MATERIAL: The material is available in carbon steel, galvanized sheet, stainless steel, aluminum etc.
- CUSTOMIZE: Customized is available.
How to Order Expanded Metal Sheet Pannel From AGICO
![Out of Square](/uploads/allimg/expanded-metal-mesh-Out-of-Square.jpg)
Out of Square: Squareness after flattening-ends shall not be more than 1/8 inch per foot of square or 3/8 inch overal in relation to the side of sheet
![Camber](/uploads/allimg/Camber.jpg)
Camber:The max deviation of a side edge from a straight lne shall not exceed 1/16'' per foot of dimension; After flattening, this number shall not exceed 3/32''.
When ordering expanded metals, please provide the following complete specifications :
- Style of mesh: such as 3/4 #9, 1/2#16..
- Quantity of sheets.
- Sheet size: LWD dimension and SWD dimension.
- Type of material: steel ,SS or aluminum
- Finish: untreated or galvanized
- Regular or flattened.
- Tolerences if required.
Expanded Metal Sheet Pannel Available Standard

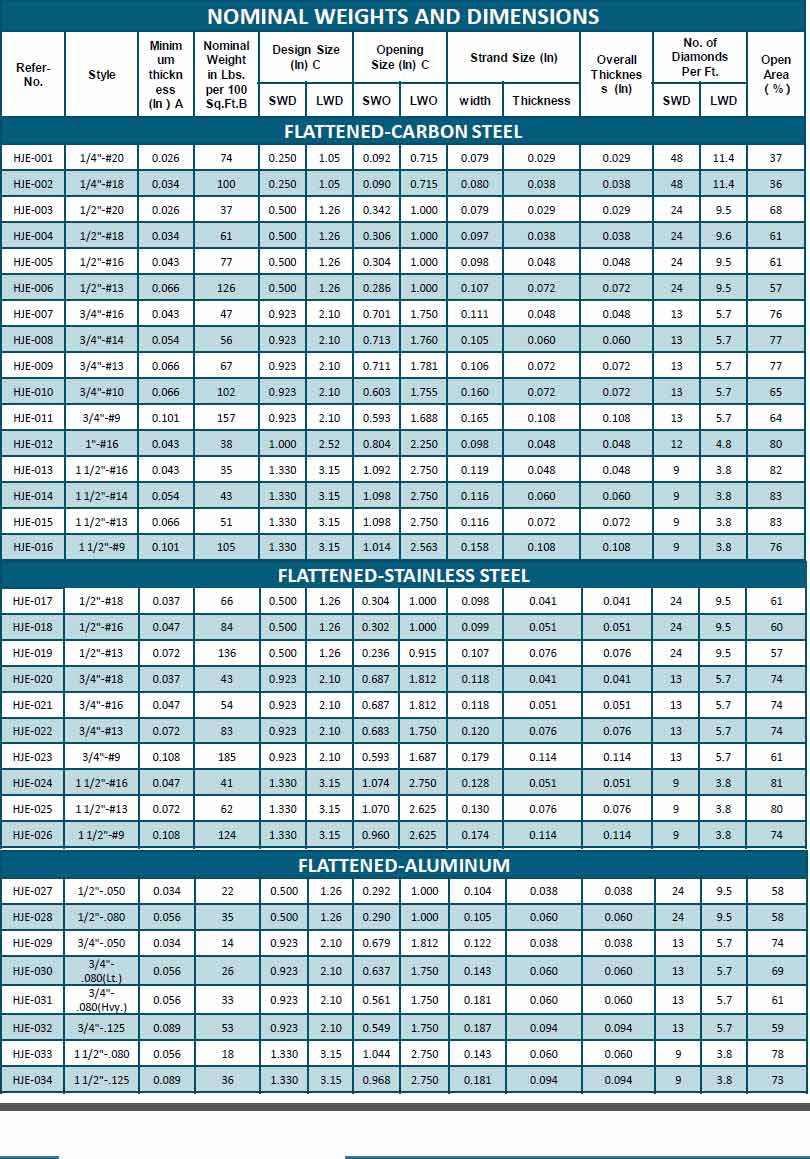

![American Standard](/uploads/allimg/America-Standard-expanded-metal-sheet.jpg)
![Canada Standard](/uploads/allimg/canada-expanded-metal-sheet-standard1.jpg)

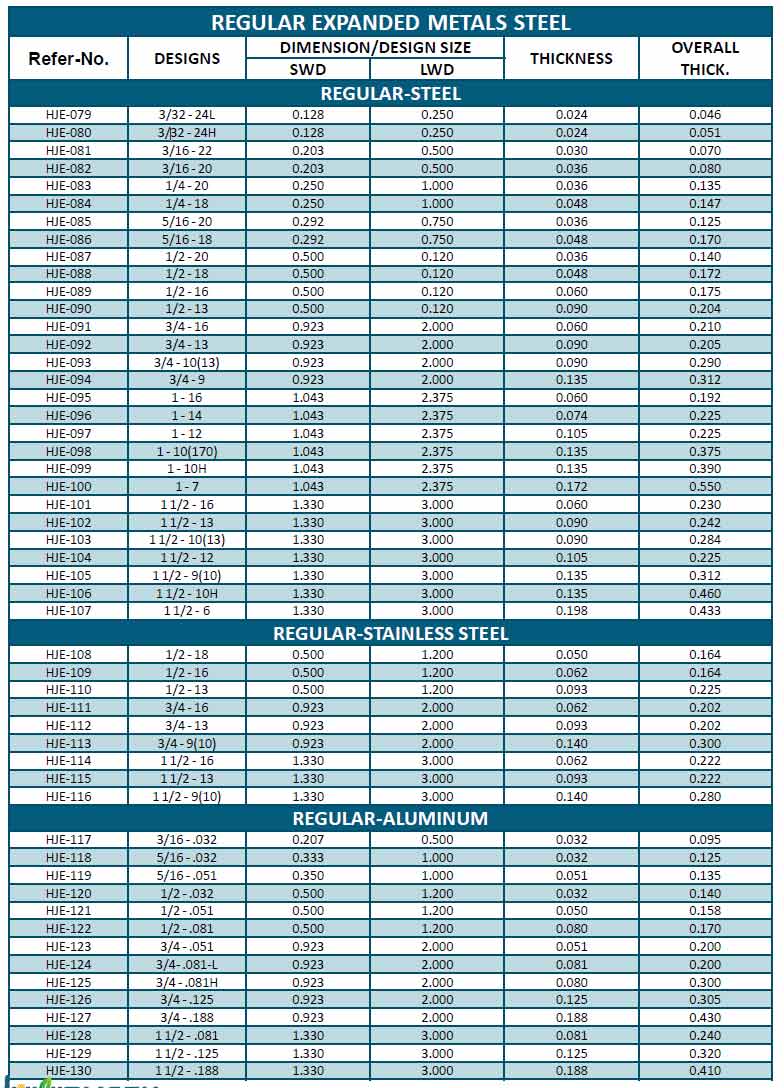

![Canada Standard](/uploads/allimg/Canada-expanded-metal-sheetstandard2.jpg)
![Jappan Thailand Standard](/uploads/allimg/Japan-thailand-expanded-metal-standard.jpg)

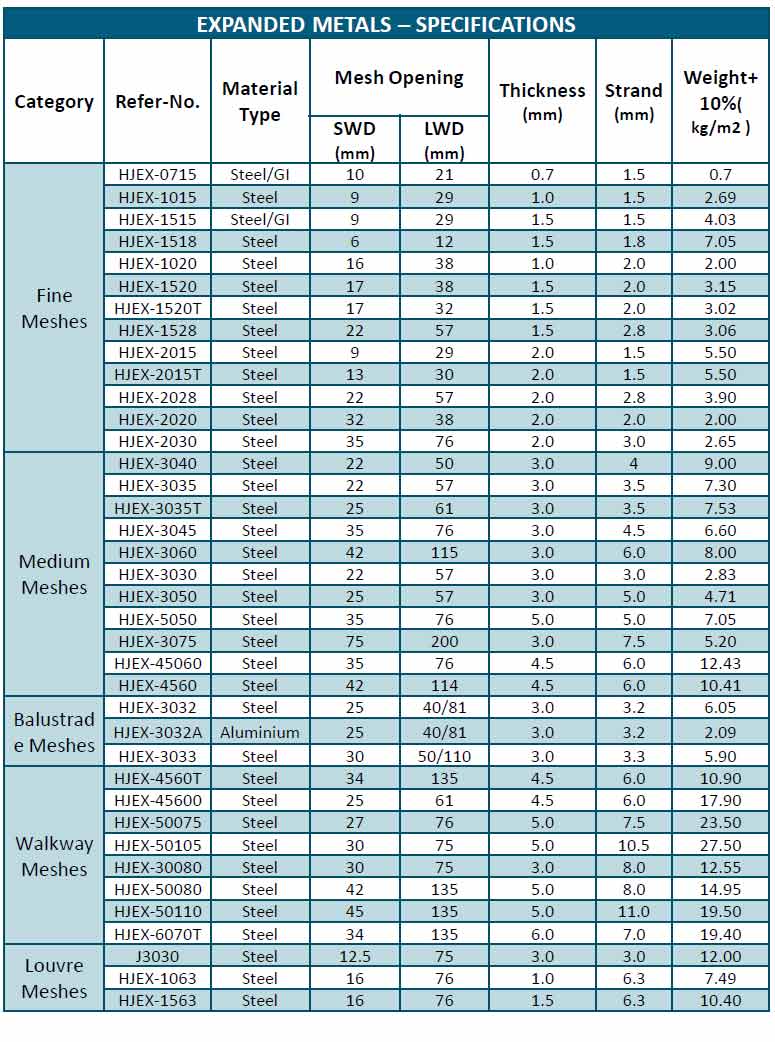

![Singarpore Standard](/uploads/allimg/singapore-expanded-metal-sheet-standard1.jpg)

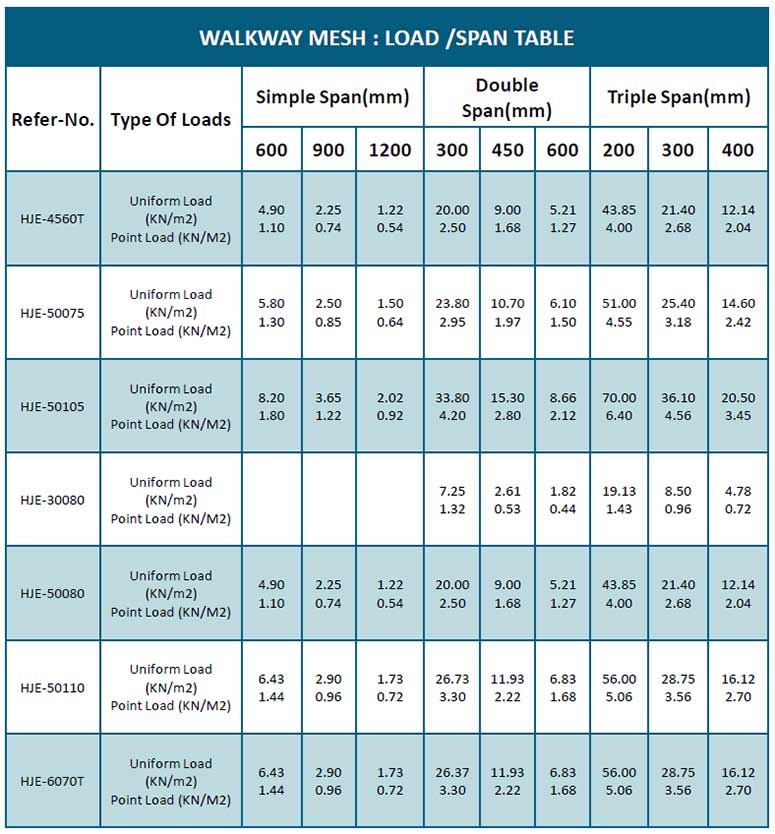

![Singarpore Standard](/uploads/allimg/singarpore-expanded-metal-standard-2.jpg)
